SAS-HLX-8644 Not Functioning On FanOut / Splitter SAS Cables

SAS-HLX-8644 Not Functioning On FanOut / Splitter SAS Cables

Issue:  Unable to detect SAS LTO desktop drive via an 8644 fanout or splitter cable.

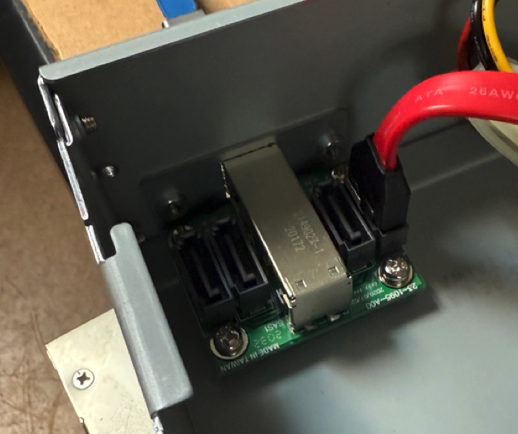

Resolution:  Please  remove the top cover and move the internal cable connecting to the SAS port on the back from port #3 to port #1 as displayed in the picture.
